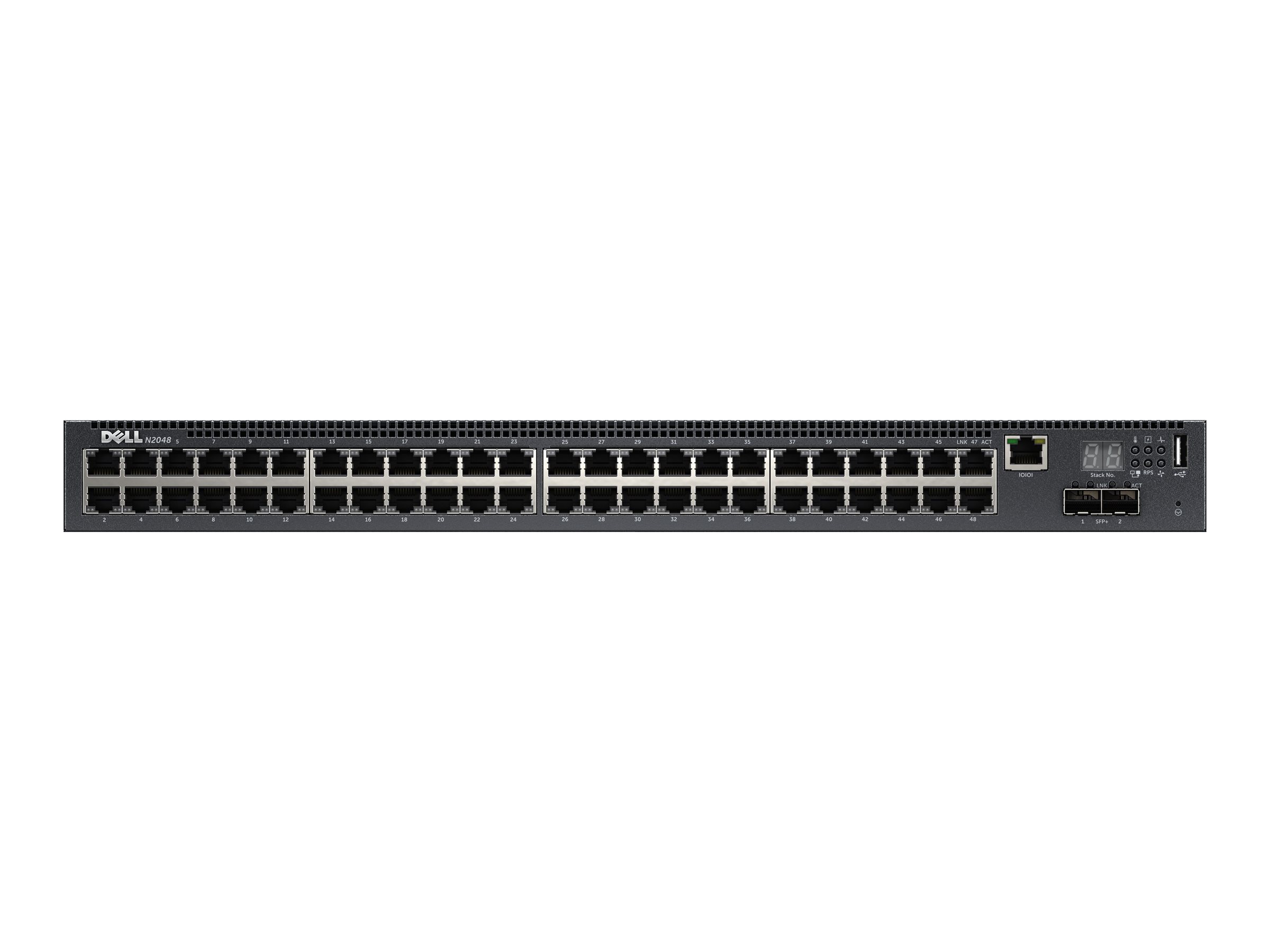

Dell – 210-ABNX – Networking N2048 – Switch – L2+ – Managed – 48 x 10/100/1000 + 2 x 10 Gigabit SFP+ – front to back airflow – rack-mountable

Zapytaj o cenę
Category: Tags: , , , , ,

Description

Networking N2048 – Switch – L2+ – Managed – 48 x 10/100/1000 + 2 x 10 Gigabit SFP+ – front to back airflow – rack-mountable
Dimensions & Weight
Depth: 25.7 cm
Height: 4.35 cm
Weight: 4.05 kg
Width: 44 cm
Environmental Parameters
Humidity Range Operating: 0 – 95%
Humidity Range Storage: 0 – 85%
Max Operating Temperature: 45 °C
Max Storage Temperature: 65 °C
Min Operating Temperature: 0 °C
Min Storage Temperature: -40 °C
Expansion / Connectivity
Interfaces: 48 x Gigabit LAN RJ-45 ¦ 2 x 10Gbit LAN SFP+ ¦ 1 x serial (RS-232) RJ-45 management ¦ 1 x USB Type A ¦ 2 x network stack device
General
Authentication Method: Secure Shell (SSH), RADIUS, TACACS+
Capacity: Virtual interfaces (VLANs): 4096 ¦ ARP entries: 1024 ¦ NDP entries: 400 ¦ Priority queues per port: 8 ¦ IPv4 routes (static): 256 ¦ IPv6 routes (static): 128 ¦ IPv4 routes (dynamic): 256 ¦ VLAN routing interfaces: 256 ¦ ACL: 100 ¦ Max ACL rules system-wide: 2048 ¦ Maximum rules per ACL: 1023 ¦ Maximum ACL rules per interface (IPv4) ingress rules: 1024 ¦ Maximum ACL rules per interface (IPv4) egress rules: 512 ¦ Maximum ACL rules per interface (IPv6) ingress rules: 512 ¦ Maximum ACL rules per interface (IPv6) egress rules: 256 ¦ Maximum VLAN interfaces with ACLs applied: 24 ¦ Maximum aggregation groups: 128 ¦ Maximum dynamic ports per switch stack: 144 ¦ Maximum member ports per LAG: 8
Device Type: Switch – 48 ports – L2+ – Managed – stackable
Enclosure Type: Front to back airflow rack-mountable 1U
Encryption Algorithm: MD5, AES, SSL, TLS
Features: Flow control, auto-negotiation, VLAN support, port mirroring, DiffServ support, Broadcast Storm Control, IPv6 support, Access Control List (ACL) support, IPv4 support, Energy Efficient Ethernet, Management Information Base (MIB), dual firmware images, Neighbor Discovery Protocol (NDP), redundant fans
Flash Memory: 256 MB
MAC Address Table Size: 8192 entries
Performance: Switching fabric bandwidth: 220 Gbps ¦ Forwarding performance: 164 Mpps ¦ Stacking bandwidth: 84 Gbps
Ports: 48 x 10/100/1000 + 2 x 10 Gigabit SFP+
RAM: 1 GB
Remote Management Protocol: Telnet, TFTP
Routing Protocol: RIP-1, RIP-2, static IPv4 routing, static IPv6 routing
Subtype: Gigabit Ethernet
Miscellaneous
Compliant Standards: FCC Class A certified, cUL, GS, RoHS, WEEE, REACH, ICES Class A, VCCI Class A, EAC, CCC Class A
Rack Mounting Kit: Included
Power
Features: Redundant Power System (RPS) connector
Installed Qty: 1
Power Consumption Operational: 53.9 Watt
Power Device: Internal power supply
Power Provided: 100 Watt
