Description
| Chassis | |
|---|---|
| Installed Devices / Modules Qty: | 0 |
| Supported Devices / Modules Qty: | 12 |
| Supported Drives: | SATA-300 / SAS-2 |
| Dimensions & Weight | |
|---|---|
| Depth: | 55.1 cm |
| Height: | 8.9 cm |
| Weight: | 15.5 kg |
| Width: | 44.7 cm |
| Environmental Parameters | |
|---|---|
| Humidity Range Operating: | 10 – 90% (non-condensing) |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 5 °C |
| Expansion / Connectivity | |
|---|---|
| Expansion Bays: | 12 (total) / 12 (free) – 3.5″ LFF |
| Interfaces: | 4 x SAS 6Gb/s – 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) |
| General | |
|---|---|

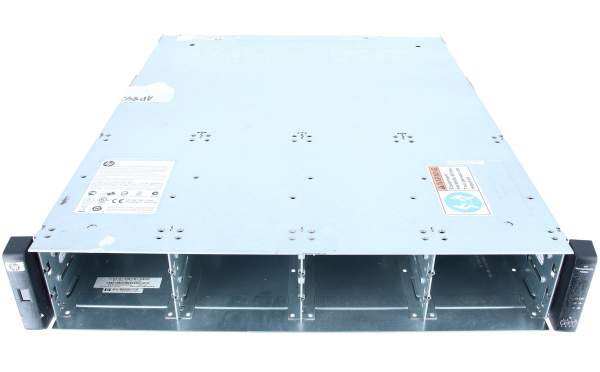

| Device Type: | Storage enclosure |
| Enclosure Type: | Rack-mountable – 2U |
| Hard Drive | |
|---|---|
| Interface Type: | SATA 3Gb/s / SAS 6Gb/s |
| Miscellaneous | |
|---|---|
| Cables Included: | 2 x SAS cable – 50 cm |
| Compliant Standards: | VCCI, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, GS, EN 61000-3-3, EN55022 Class A, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, RoHS, FCC Part 15 A, EN55024 Class A, CAN/CSA C22.2 No. 60950-1-03 |
| Power | |
|---|---|
| Power Device: | 2 x internal power supply – hot-plug |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| Voltage Required: | AC 120/230 V – 50 – 60 Hz |
