Description
| Dimensions & Weight | |
|---|---|
| Depth: | 39.2 cm |
| Height: | 4.4 cm |
| Weight: | 6.4 kg |
| Width: | 44.3 cm |
| Environmental Parameters | |
|---|---|
| Humidity Range Operating: | 15 – 95% |
| Max Operating Temperature: | 55 °C |
| Min Operating Temperature: | 0 °C |
| Expansion / Connectivity | |
|---|---|
| Interfaces: | 1 x serial (RS-232) DB-9 management ¦ 24 x 1000Base-T RJ-45 PoE ¦ 4 x SFP (mini-GBIC) |
| General | |
|---|---|
| Authentication Method: | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |

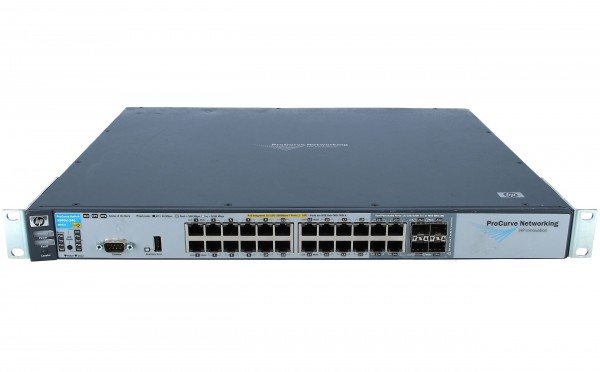

| Device Type: | Switch – 24 ports – Managed |
| Enclosure Type: | Rack-mountable 1U |
| Features: | Flow control, BOOTP support, ARP support, VLAN support, manageable |
| Ports: | 24 x 10/100/1000 (PoE) + 4 x shared SFP |
| Power Over Ethernet (PoE): | PoE |
| Remote Management Protocol: | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP |
| Routing Protocol: | RIP-2, IGMPv2, IGMP, OSPFv2, IGMPv3 |
| Subtype: | Gigabit Ethernet |
| Miscellaneous | |
|---|---|
| Compliant Standards: | FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, UL 60950, CSA 22.2 No. 60950 |
| Rack Mounting Kit: | Included |
| Power | |
|---|---|
| Power Consumption Operational: | 759 Watt |
| Power Device: | Internal power supply |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
