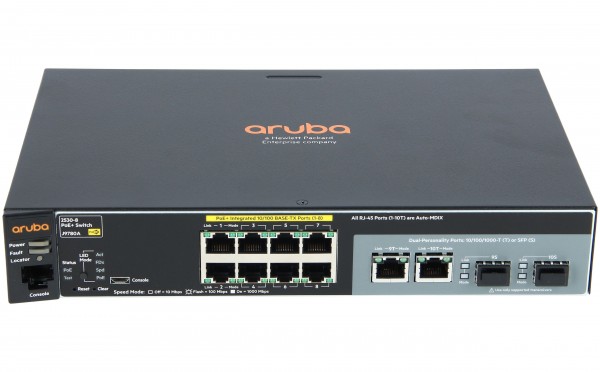

HP – J9780A – HP 2530-8-PoE+ Switch

Zapytaj o cenę

Category: HP Tags: HP, Switch

Description
Reviews (0)

Description

Dimensions & Weight
Depth:	15.95 cm
Height:	4.45 cm
Weight:	910 g
Width:	25.4 cm

Environmental Parameters
Humidity Range Operating:	15 – 95% (non-condensing)
Humidity Range Storage:	15 – 90% (non-condensing)
Max Operating Temperature:	45 °C
Max Storage Temperature:	70 °C
Min Operating Temperature:	0 °C
Min Storage Temperature:	-40 °C

Expansion / Connectivity
Interfaces:	2 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ 2 x SFP (mini-GBIC) ¦ 1 x management RJ-45 ¦ 8 x 10Base-T/100Base-TX – RJ-45 PoE+

General
Authentication Method:	RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Capacity:	MAC addresses: 16000
Compliant Standards:	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Device Type:	Switch – 8 ports – Managed
Enclosure Type:	Desktop, rack-mountable, wall-mountable 1U
Encryption Algorithm:	SSL
Features:	Flow control, DHCP support, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, half duplex mode, full duplex mode, SNTP support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), STP Root Guard, LLDP support, Class of Service (CoS), Generic Attribute Registration Protocol (GARP)
Flash Memory:	128 MB
Jumbo Frame Support:	9220 bytes
MAC Address Table Size:	16000 entries
Performance:	Throughput: 4.1 Mpps ¦ Switching capacity: 5.6 Gbps
Ports:	8 x 10/100 + 2 x Gigabit SFP + 2 x 10/100/1000
Power Over Ethernet (PoE):	PoE+
Processor:	1 x ARM: 800 MHz
RAM:	256 MB DDR3 SDRAM
Remote Management Protocol:	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH-2, CLI
Subtype:	Fast Ethernet

Miscellaneous
Compliant Standards:	FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825, CSA C22.2 No. 60950-1
Localisation:	English / Europe

Power
Power Device:	Internal power supply
Voltage Required:	AC 120/230 V (50/60 Hz)
