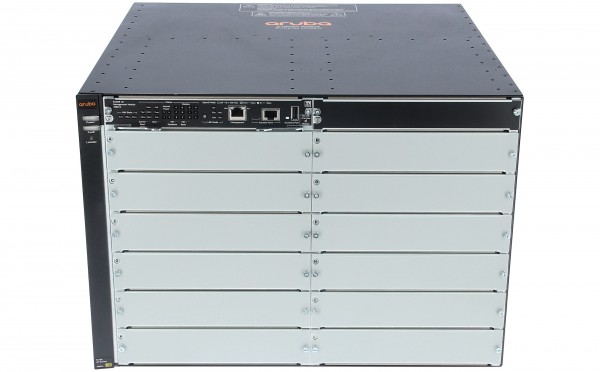

HP – J9822A – Aruba 5412R zl2 Switch

Zapytaj o cenę

Category: HP Tags: Aruba, HP, Switch

Description
Reviews (0)

Description

Dimensions & Weight
Depth:	45.09 cm
Height:	30.73 cm
Weight:	17.28 kg
Width:	44.45 cm

Environmental Parameters
Humidity Range Operating:	15 – 95% (non-condensing)
Humidity Range Storage:	15 – 95% (non-condensing)
Max Operating Temperature:	45 °C
Max Storage Temperature:	70 °C
Min Operating Temperature:	0 °C
Min Storage Temperature:	-40 °C

Expansion / Connectivity
Expansion Slots:	12 (total) / 11 (free) x Expansion Slot
Installed Modules Qty (Max):	1 (installed) / 12 (max)
Interfaces:	1 x RJ-45 management

General
Authentication Method:	RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Capacity:	IPv4 routing table entries: 10000 ¦ IPv6 routing table entries: 5000
Compliant Standards:	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Device Type:	Switch – Managed
Enclosure Type:	Rack-mountable 7U
Encryption Algorithm:	SSL
Features:	Flow control, DHCP support, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), DiffServ support, IPv6 support, half duplex mode, full duplex mode, SNTP support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, tunnelling, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Non-Stop Routing (NSR), bandwidth control, STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, DHCP relay, Port Security, fan tray, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), dynamic ARP protection, DHCP protection, dual firmware images, Class of Service (CoS), sFlow v5, GARP VLAN Registration Protocol (GVRP), Type of Service (ToS)
Flash Memory:	1 GB
MAC Address Table Size:	64K entries
Performance:	Throughput: 785.7 Mpps ¦ Routing/switching capacity: 1 Tbps
Processor:	1 x Freescale P2020: 1.2 GHz
RAM:	4 GB
Remote Management Protocol:	SNMP 1, RMON 1, RMON 2, SNMP, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SMON, SSH, CLI, XRMON
Routing Protocol:	OSPF, RIP-1, RIP-2, BGP, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, OSPFv3, static IPv6 routing, MLDv2, MLD, CIDR
Subtype:	Gigabit Ethernet

Miscellaneous
Compliant Standards:	CISPR 22 Class A, EN 60950, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 60950, EN 61000-3-3, EN55022 Class A, UL 60950, CSA 22.2 No. 60950, FCC Part 15 A, ISO 7779
Included Accessories:	Fan tray
Rack Mounting Kit:	Included

Power
Installed Qty:	0 (installed) / 4 (max)
Power Device:	Internal power supply
Power Redundancy:	Optional
Voltage Required:	AC 120/230 V (50/60 Hz)
