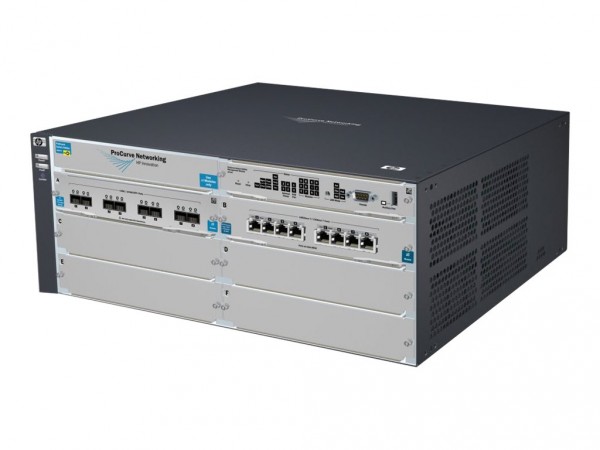

HP – J9866A – HP 5406 v2 zl Switch, 8x 10GBASE-T-Anschluesse, 8 10GbE-SFP+-Anschluesse, mit Prem

Zapytaj o cenę

Category: HP Tags: Anschluesse, BASE-T, HP

Description
Reviews (0)

Description

Dimensions & Weight
Depth:	45.09 cm
Height:	17.53 cm
Weight:	10.68 kg
Width:	44.45 cm

Environmental Parameters
Humidity Range Operating:	15 – 95% (non-condensing)
Humidity Range Storage:	15 – 95% (non-condensing)
Max Operating Temperature:	55 °C
Max Storage Temperature:	70 °C
Min Operating Temperature:	0 °C
Min Storage Temperature:	-40 °C

Expansion / Connectivity
Expansion Slots:	6 (total) / 4 (free) x Expansion Slot ¦ 1 (total) / 1 (free) x CompactFlash Card
Installed Modules Qty (Max):	2 (installed) / 6 (max)
Interfaces:	8 x 10GBase-T RJ-45 ¦ 8 x SFP+ ¦ 1 x serial (RS-232) management

General
Authentication Method:	Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Capacity:	Routing table entries: 10000
Compliant Standards:	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 801.1p, IEEE 802.1v, IEEE 802.3an
Device Type:	Switch – 8 ports – L4 – Managed – with HP 5400 zl Switch Premium License
Enclosure Type:	Rack-mountable 4U
Encryption Algorithm:	SSL
Features:	Flow control, routing, power over Ethernet (PoE), BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), DiffServ support, manageable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Uni-Directional Link Detection (UDLD)
Flash Memory:	4 MB
Jumbo Frame Support:	Yes
MAC Address Table Size:	64K entries
Performance:	Routing/switching capacity: 379.2 Gbps ¦ Throughput: up to 282.1 Mpps
Ports:	8 x 10GBase-T + 8 x 10 Gigabit SFP+
Processor:	1 x Freescale PowerPC 8540: 666 MHz
RAM:	256 MB DDR SDRAM
Remote Management Protocol:	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP
Routing Protocol:	RIP-1, RIP-2, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv6 routing
Subtype:	10 Gigabit Ethernet

Miscellaneous
Compliant Standards:	FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, CSA 22.2 No. 60950
Pricing Type:	Remarketed
Rack Mounting Kit:	Included

Power
Installed Qty:	1 (installed) / 2 (max)
Power Device:	Internal power supply – hot-plug
Power Provided:	1500 Watt
Power Redundancy:	Optional
Voltage Required:	AC 120/230 V (50/60 Hz)
