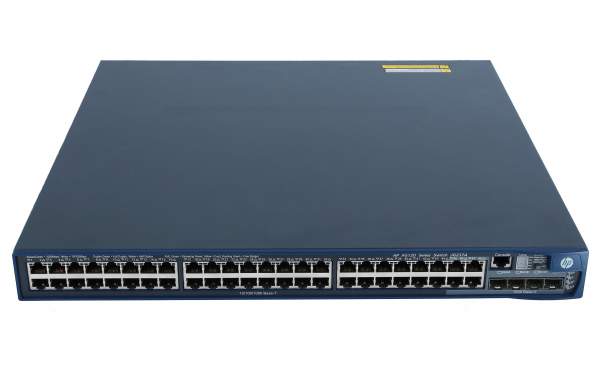

HP – JG237A – HP PROCURVE A5120 48G POE+ EI SWITCH WITH 2 INTERFACE SLOTS

Zapytaj o cenę

Category: HP Tags: El Switch, HP, INTERFACE SLOTS, JG, ProCurve

Description
Reviews (0)

Description

Dimensions & Weight
Depth:	42 cm
Height:	4.4 cm
Weight:	7.5 kg
Width:	44 cm

Environmental Parameters
Humidity Range Operating:	10 – 90% (non-condensing)
Max Operating Temperature:	45 °C
Max Storage Temperature:	70 °C
Min Operating Temperature:	0 °C
Min Storage Temperature:	-40 °C

Expansion / Connectivity
Expansion Slots:	2 (total) / 2 (free) x Expansion Slot
Installed Modules Qty (Max):	0 (installed) / 2 (max)
Interfaces:	48 x 1000Base-T RJ-45 PoE ¦ 1 x console RJ-45 management ¦ 4 x SFP (mini-GBIC)

General
Authentication Method:	Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Compliant Standards:	IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ad, IEEE 802.1ab (LLDP)
Device Type:	Switch – 48 ports – Managed – stackable
Enclosure Type:	Rack-mountable 1U
Encryption Algorithm:	SSL
Features:	Flow control, routing, Layer 3 switching, Layer 2 switching, DHCP support, power over Ethernet (PoE), BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, sFlow, Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), Jumbo Frames support, MLD snooping, Device Link Detection Protocol (DLDP) support, Endpoint Admission Defense (EAD), STP Root Guard
Flash Memory:	16 MB
Jumbo Frame Support:	9216 bytes
MAC Address Table Size:	16K entries
Performance:	Routing/switching capacity: 192 Gbps ¦ Throughput: 142.9 Mpps
Ports:	48 x 10/100/1000 (PoE) + 4 x shared SFP
Power Over Ethernet (PoE):	PoE
RAM:	128 MB SDRAM
Remote Management Protocol:	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, CLI
Routing Protocol:	Static IPv4 routing, static IPv6 routing
Subtype:	Gigabit Ethernet

Miscellaneous
Compliant Standards:	CISPR 22 Class A, ICES-003 Class A, RoHS, WEEE, FCC Part 15 A, CSA C22.2 No. 60950-1, EN 60825-1
Rack Mounting Kit:	Included

Power
Power Device:	Internal power supply
Voltage Required:	AC 120/230 V (50/60 Hz)
