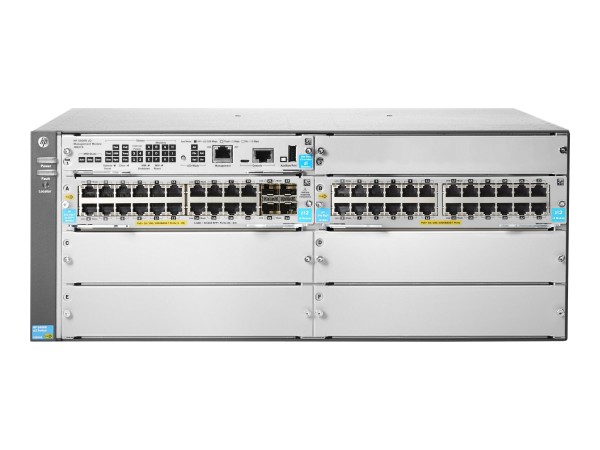

HP – JL003A – Aruba 5406R 44GT PoE+/4SFP+ v3 zl2 Swch

Zapytaj o cenę

Category: HP Tags: Aruba, HP, JL, Swch

Description
Reviews (0)

Description

Dimensions & Weight
Depth:	45.09 cm
Height:	17.53 cm
Weight:	12.75 kg
Width:	44.45 cm

Environmental Parameters
Humidity Range Operating:	15 – 95% (non-condensing)
Humidity Range Storage:	15 – 95% (non-condensing)
Max Operating Temperature:	45 °C
Max Storage Temperature:	70 °C
Min Operating Temperature:	0 °C
Min Storage Temperature:	-40 °C

Expansion / Connectivity
Expansion Slots:	6 (total) / 4 (free) x Expansion Slot ¦ 1 (total) / 0 (free) x SD Memory Card
Installed Modules Qty (Max):	2 (installed) / 6 (max)
Interfaces:	44 x 1000Base-T RJ-45 ¦ 8 x Gigabit / 10Gbit LAN SFP+

General
Authentication Method:	Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Capacity:	IPv4 routing table entries: 10000 ¦ IPv6 routing table entries: 5000
Compliant Standards:	IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Device Type:	Switch – 44 ports – Managed
Enclosure Type:	Rack-mountable 4U
Encryption Algorithm:	SSL
Features:	Flow control, routing, DHCP support, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DiffServ support, IPv6 support, half duplex mode, full duplex mode, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, tunnelling, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Non-Stop Routing (NSR), bandwidth control, STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, DHCP relay, Port Security, fan tray, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), dynamic ARP protection, DHCP protection, dual firmware images, Class of Service (CoS), sFlow v5, GARP VLAN Registration Protocol (GVRP), Type of Service (ToS), MACsec support
Flash Memory:	1 GB
Jumbo Frame Support:	Yes
MAC Address Table Size:	64K entries
Performance:	Routing/switching capacity: 960 Gbps ¦ Throughput: up to 571.4 Mpps ¦ Switching fabric bandwidth: 1015 Gbps
Ports:	44 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+
Power Over Ethernet (PoE):	PoE+
Processor:	1 x Freescale P2020: 1.2 GHz
RAM:	4 GB DDR3 SDRAM
Remote Management Protocol:	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SMON, CLI, XRMON
Routing Protocol:	RIP-1, RIP-2, BGP, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPFv3, static IPv6 routing, MLDv2, MLD
Subtype:	Gigabit Ethernet

Miscellaneous
Compliant Standards:	FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, CSA 22.2 No. 60950
Included Accessories:	Fan tray
Rack Mounting Kit:	Included

Power
Installed Qty:	0 (installed) / 2 (max)
Power Device:	Internal power supply
