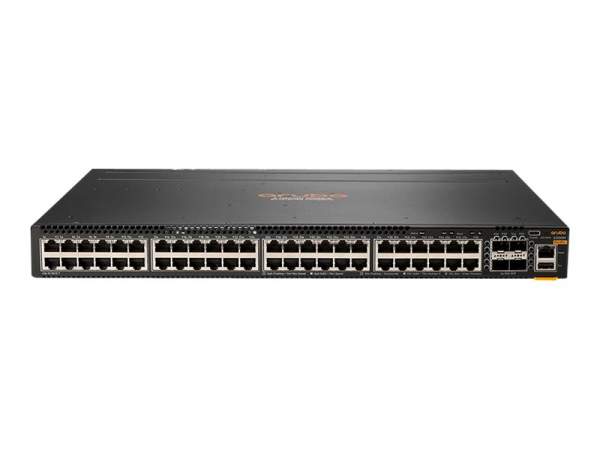

HP – JL762A – Aruba 6300M – Switch – L3 – managed – 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (Uplink / Stacking)

Zapytaj o cenę

Category: HP Tags: Aruba, Gigabit, HP, JL, managed, SFP, stacking, Switch, Uplink

Description
Reviews (0)

Description

Dimensions & Weight
Depth:	38.5 cm
Height:	4.4 cm
Weight:	5.7 kg
Width:	44.2 cm

Environmental Parameters
Humidity Range Operating:	15 – 95% (non-condensing)
Humidity Range Storage:	15 – 95% (non-condensing)
Max Operating Temperature:	45 °C
Max Storage Temperature:	70 °C
Min Operating Temperature:	0 °C
Min Storage Temperature:	-40 °C

Expansion / Connectivity
Interfaces:	48 x 10/100/1000 Base-T RJ-45 ¦ 4 x 1Gbit/10Gbit/25Gbit/50Gbit SFP56 ¦ 1 x USB-C ¦ 1 x management ¦ 1 x USB Type A

General
Authentication Method:	Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Capacity:	Switched virtual interfaces (SVIs): 1024 ¦ IPv4 host table capacity: 49152 ¦ IPv6 host table capacity: 49152 ¦ IPv4 routes (Unicast): 61000 ¦ IPv6 routes (Unicast): 61000 ¦ IPv4 routes (Multicast): 8192 ¦ IPv6 routes (Multicast): 8192 ¦ IGMP groups: 8192 ¦ MLD groups: 8192 ¦ IPv4 ACL entries (ingress): 20480 ¦ IPv6 ACL entries (ingress): 5120 ¦ MAC ACL entries (ingress): 20480 ¦ IPv4 ACL entries (egress): 8192 ¦ IPv6 ACL entries (egress): 2048 ¦ MAC ACL entries (egress): 8192
Compliant Standards:	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX
Device Type:	Switch – 48 ports – L3 – Managed – stackable
Enclosure Type:	Back to front airflow rack-mountable 1U
Encryption Algorithm:	FIPS 140-2
Features:	DHCP support, VLAN support, auto-uplink (auto MDI/MDI-X), Syslog support, IPv6 support, High Availability, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Per-VLAN Spanning Tree (PVST), Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Deficit Weighted Round Robin (DWRR), LLDP support, fan tray, Management Information Base (MIB), DHCP protection, dual firmware images, Multiple VLAN Registration Protocol (MVRP), packet storm protection, Class of Service (CoS), broadcast storm protection, Multicast Source Discovery Protocol (MSDP), Type of Service (ToS), Bridge protocol data unit (BPDU), Virtual Extensible LAN (VXLAN), Multicast Storm Protection, Network Timing Protocol (NTP), RA guard, Zero-touch provisioning (ZTP), Protocol Independent Multicast (PIM), VLAN Tagging, Rapid Reconfiguration of Spanning Tree (RSTP), IPv4 and IPv6 dual stack, 2 fan tray slots, IP multicast, Bootstrap Router (BSR) Mechanism, Aruba Virtual Switching Framework (VSF), dynamic IPv6 lockdown, ND snooping, Unicast Storm protection, Microsoft Network Load Balancer (NLB)
Flash Memory:	32 GB
Jumbo Frame Support:	9198 bytes
MAC Address Table Size:	32768 entries
Performance:	Switching capacity: 496 Gbps ¦ Throughput: 369 Mpps ¦ Latency (1 Gbps): 2.28 µs ¦ Latency (10 Gbps): 1.46 µs ¦ Latency (25 Gbps): 1.9 µs ¦ Latency (50 Gbps): 3.49 µs ¦ Stacking bandwidth: 200 Gbps
Ports:	48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking)
Processor:	1 x ARM Cortex-A72: 1.8 GHz
RAM:	8 GB DDR4 SDRAM
Remote Management Protocol:	SNMP, RMON, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI, SFTP
Routing Protocol:	OSPF, EGP, BGP-4, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, MSDP, ECMP, policy-based routing (PBR), MLD, Bidirectional Forwarding Detection (BFD), MSTP, RSTP, STP
Subtype:	Gigabit Ethernet

Miscellaneous
Compliant Standards:	EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, ICES-003 Class A, UL 60950-1 Second Edition, CAN/CSA C22.2 No. 60950-1-07, VCCI Class A, IEC 60950-1:2005, EN 61000-3-3:2013, EN 61000-3-2:2014, EN 60825-1:2007, FCC CFR47 Part 15 B Class A, CNS 14336-1, IEC 60825-1:2007 Class 1, CISPR 32:2015+COR1:2016, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011, EN 55035:2017, EN 62368-1:2014+A11:2017, EN 55032:2015+AC:2016 Class A, IEC 62368-1: 2014, CISPR 35:2016 Class A
Rack Mounting Kit:	Included
TAA Compliant:	Yes

Power
Features:	Power-to-port airflow
Installed Qty:	1 (installed) / 2 (max)
Power Device:	Internal power supply – hot-plug
Power Provided:	75 Watt
Power Redundancy:	Optional
Power Redundancy Scheme:	1+1 (with optional power supply)
Voltage Required:	AC 120/230 V (50/60 Hz)
