Description
| Chassis | |
|---|---|
| Installed Devices / Modules Qty: | 0 |
| Supported Devices / Modules Qty: | 24 |
| Supported Drives: | SAS-2 |
| Dimensions & Weight | |
|---|---|
| Depth: | 49.5 cm |
| Height: | 8.9 cm |
| Width: | 44.7 cm |
| Environmental Parameters | |
|---|---|
| Humidity Range Operating: | 10 – 90% (non-condensing) |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 5 °C |
| Environmental Standards | |
|---|---|
| ENERGY STAR Certified: | Yes |
| Expansion / Connectivity | |
|---|---|
| Expansion Bays: | 24 (total) / 24 (free) – 2.5″ SFF |
| General | |
|---|---|

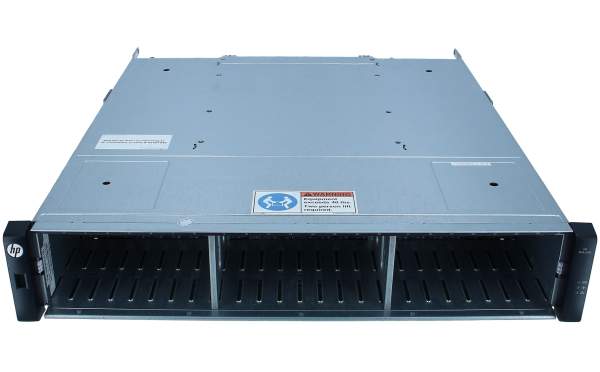

| Device Type: | Storage enclosure |
| Enclosure Type: | Rack-mountable – 2U |
| Hard Drive | |
|---|---|
| Type: | No HDD |
| Miscellaneous | |
|---|---|
| Compliant Standards: | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, GS, EN 61000-3-3, EN55022 Class A, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, RoHS, FCC Part 15 A, EN55024 Class A, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A |
| Power | |
|---|---|
| Max Supported Qty: | 2 |
| Power Device: | 2 x internal power supply – hot-plug |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| Voltage Required: | AC 120/230 V – 50/60 Hz |
| Storage | |
|---|---|
| Max Supported Capacity: | 43 TB |
| Maximum LUNs: | 512 |
| System Requirements | |
|---|---|
| OS Required: | HP-UX, Red Hat Linux, SUSE Linux Enterprise Server, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 |
