Description
| Dimensions & Weight | |
|---|---|
| Depth: | 44.3 cm |
| Height: | 4.3 cm |
| Weight: | 7.8 kg |
| Width: | 54.6 cm |
| Environmental Parameters | |
|---|---|
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 5 °C |
| Expansion / Connectivity | |
|---|---|
| Interfaces: | 1 x serial (RS-232) DB-9 management ¦ 20 x 1000Base-T RJ-45 ¦ 4 x SFP (mini-GBIC) |
| General | |
|---|---|
| Authentication Method: | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Compliant Standards: | IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.11d, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP) |

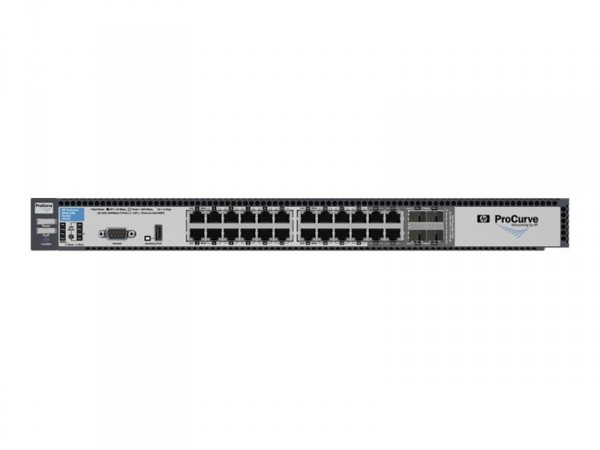

| Device Type: | Switch – 24 ports – L3 – Managed |
| Enclosure Type: | Desktop 1U |
| Features: | Layer 3 switching, VLAN support, manageable, Quality of Service (QoS), Jumbo Frames support |
| Flash Memory: | 4 MB Flash |
| Ports: | 24 x 10/100/1000 + 4 x shared SFP |
| Processor: | 1 x Freescale PowerPC 8540: 666 MHz |
| RAM: | 256 MB SDRAM |
| Remote Management Protocol: | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c |
| Routing Protocol: | RIP-1, RIP-2, static IP routing, IGMPv3 |
| Subtype: | Gigabit Ethernet |
| Miscellaneous | |
|---|---|
| Compliant Standards: | FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, VCCI Class A ITE, EN 61000-3-3, EN55024, CSA 22.2 No. 950, UL 60950 |
| Rack Mounting Kit: | Optional |
| Power | |
|---|---|
| Power Device: | Internal power supply |
| Power Redundancy: | Yes |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
