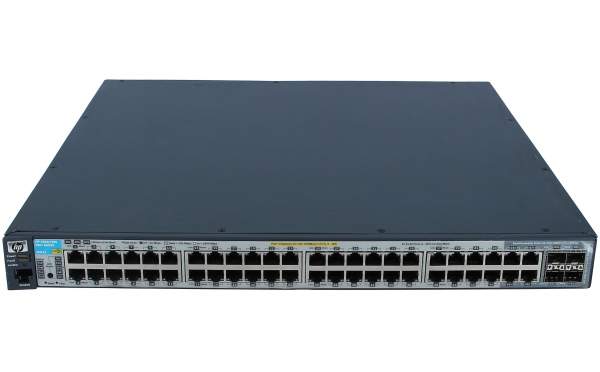

HPE – J9311A – 3500-48G-PoE+ yl Switch – Switch – 1.000 Mbps – 48-Port 1 HE – Kabellos Rack-Modu

Zapytaj o cenę

Category: HP Tags: HE - Kabellos Rack-Module, HPE, yl Switch

Description
Reviews (0)

Description

Dimensions & Weight
Depth:	43 cm
Height:	4.4 cm
Weight:	7.1 kg
Width:	44.3 cm

Environmental Parameters
Humidity Range Operating:	15 – 95%
Max Operating Temperature:	55 °C
Min Operating Temperature:	0 °C

Expansion / Connectivity
Expansion Slots:	1 (total) / 1 (free) x Expansion Slot
Interfaces:	1 x serial (RS-232) DB-9 management ¦ 48 x 1000Base-T RJ-45 PoE ¦ 4 x SFP (mini-GBIC)

General
Authentication Method:	Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Compliant Standards:	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
Device Type:	Switch – 48 ports – Managed
Enclosure Type:	Rack-mountable 1U
Encryption Algorithm:	SSL
Features:	Flow control, auto-sensing per device, DHCP support, power over Ethernet (PoE), auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), DiffServ support, manageable, SNTP support, Quality of Service (QoS)
Flash Memory:	4 MB Flash
Ports:	48 x 10/100/1000 (PoE) + 4 x shared SFP
Power Over Ethernet (PoE):	PoE
Processor:	1 x Freescale PowerPC 8540: 666 MHz
RAM:	256 MB DDR SDRAM
Remote Management Protocol:	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH
Routing Protocol:	RIP-1, RIP-2, static IP routing, IGMPv3
Status Indicators:	Port status, power
Subtype:	Gigabit Ethernet

Miscellaneous
Compliant Standards:	FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, UL 60950, CSA 22.2 No. 60950
Rack Mounting Kit:	Included

Power
Power Consumption Operational:	638 Watt
Power Device:	Internal power supply
Voltage Required:	AC 120/230 V (50/60 Hz)
