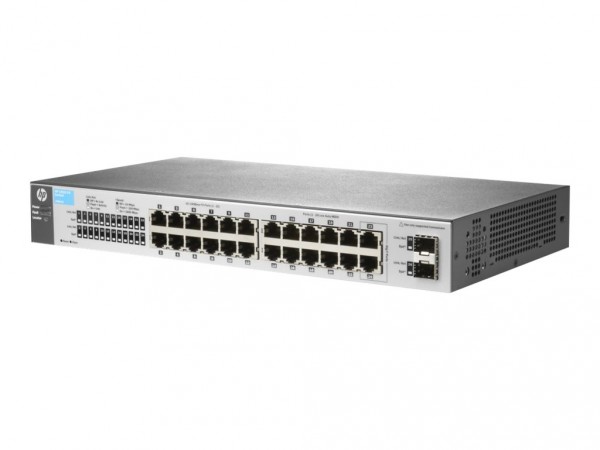

HPE – J9801A – 1810-24 v2 – Switch – 1.000 Mbps – 22-Port 1 HE – Rack-Modul

Zapytaj o cenę

Category: HP Tags: HPE, rack modul, Switch

Description
Reviews (0)

Description

Dimensions & Weight
Depth:	17.3 cm
Height:	4.39 cm
Weight:	1 kg
Width:	32.99 cm

Environmental Parameters
Humidity Range Operating:	15 – 95% (non-condensing)
Humidity Range Storage:	15 – 90% (non-condensing)
Max Operating Temperature:	40 °C
Max Storage Temperature:	70 °C
Min Operating Temperature:	0 °C
Min Storage Temperature:	-40 °C

Expansion / Connectivity
Interfaces:	22 x 100Base-TX RJ-45 ¦ 2 x 1000Base-T RJ-45 ¦ 2 x SFP (mini-GBIC)

General
Compliant Standards:	IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.3az
Device Type:	Switch – 24 ports – Managed
Enclosure Type:	Desktop, rack-mountable, wall-mountable 1U
Encryption Algorithm:	SSL
Features:	Flow control, full duplex capability, Layer 2 switching, DHCP support, BOOTP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), DoS attack prevention, port mirroring, SNTP support, Rapid Spanning Tree Protocol (RSTP) support, Quality of Service (QoS), Jumbo Frames support, LLDP support, Energy Efficient Ethernet
Flash Memory:	8 MB
Jumbo Frame Support:	9220 bytes
MAC Address Table Size:	8K entries
Performance:	Throughput: up to 38.7 Mpps ¦ Switching capacity: 12.4 Gbps
Ports:	22 x 10/100 + 2 x 10/100/1000 + 2 x Gigabit SFP
RAM:	128 MB
Remote Management Protocol:	SNMP 1, SNMP 2c, HTTP, HTTPS
Subtype:	Gigabit Ethernet

Miscellaneous
Compliant Standards:	CISPR 22 Class A, EN 60950, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 60950, EN55022 Class A, RoHS, FCC CFR47 Part 15, UL 60950-1, WEEE, VCCI V-3, VCCI V-4
Rack Mounting Kit:	Included

Power
Voltage Required:	AC 120/230 V (50/60 Hz)
