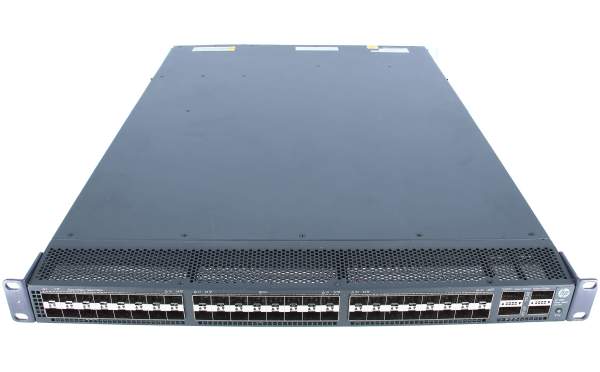

HPE – JC772A – 5900AF-48XG-4QSFP+ Switch – Switch – Glasfaser (LWL) 1.000 Mbps – 16-Port 1 HE –

Zapytaj o cenę

Category: HP Tags: Glasfaser, HP, JC, SFP, Switch, XG

Description
Reviews (0)

Description

Dimensions & Weight
Depth:	65.99 cm
Height:	4.37 cm
Weight:	13 kg
Width:	43.99 cm

Environmental Parameters
Humidity Range Operating:	10 – 90% (non-condensing)
Max Operating Temperature:	45 °C
Min Operating Temperature:	0 °C

Expansion / Connectivity
Interfaces:	48 x 10Gb Ethernet – SFP+ ¦ 4 x 40Gb Ethernet – QSFP+ ¦ 1 x console RJ-45 management ¦ 1 x USB 2.0 Type A ¦ 1 x RJ-45 management

General
Authentication Method:	Secure Shell (SSH), Secure Shell v.2 (SSH2)
Capacity:	Routing table entries: 16000
Compliant Standards:	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP)
Device Type:	Switch – 48 ports – Managed
Enclosure Type:	Rack-mountable 1U
Features:	DHCP support, ARP support, VLAN support, port mirroring, DiffServ support, Broadcast Storm Control, IPv6 support, Weighted Random Early Detection (WRED), Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), STP Root Guard
Flash Memory:	512 MB
Jumbo Frame Support:	Yes
MAC Address Table Size:	128K entries
Performance:	Throughput: 952 Mpps ¦ Routing/switching capacity: 1280 Gbps
Ports:	48 x 1 Gigabit / 10 Gigabit SFP+ + 4 x 40 Gigabit QSFP+
RAM:	2 GB SDRAM
Remote Management Protocol:	SNMP 1, Telnet, SNMP 3, SNMP 2c, CLI
Routing Protocol:	OSPF, BGP-4, RIP-1, RIP-2, BGP, VRRP, OSPFv2, static IP routing, ECMP
Subtype:	10 Gigabit Ethernet

Miscellaneous
Compliant Standards:	GOST, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, NOM, VCCI Class A ITE, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, RoHS, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, ANATEL, FDA, CSA C22.2 No. 60950-1, EN 60825-1

Power
Installed Qty:	0 (installed) / 2 (max)
Power Consumption Operational:	260 Watt
Power Device:	Internal power supply – hot-plug
Power Redundancy:	Optional
Power Redundancy Scheme:	1+1 (with optional power supply)
Voltage Required:	AC 120/230 V (50/60 Hz)
