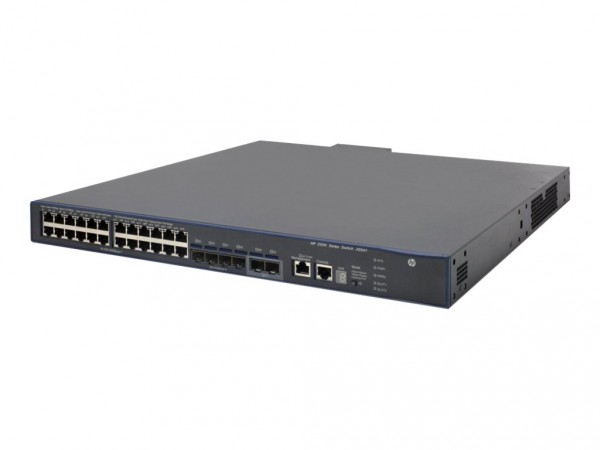

HPE – JG541A – 5500-24G-PoE+-4SFP HI Switch with 2 Interface Slots – Switch – Kupferdraht 1.000

Zapytaj o cenę

Category: HP Tags: HI SWITCH, HPE, INTERFACE SLOTS, JG, Kupferdraht, SFP

Description
Reviews (0)

Description

Dimensions & Weight
Depth:	46 cm
Height:	4.37 cm
Weight:	10 kg
Width:	43.99 cm

Environmental Parameters
Humidity Range Operating:	5 – 95% (non-condensing)
Humidity Range Storage:	5 – 95% (non-condensing)
Max Operating Temperature:	50 °C
Max Storage Temperature:	70 °C
Min Operating Temperature:	0 °C
Min Storage Temperature:	-40 °C

Expansion / Connectivity
Expansion Slots:	2 (total) / 2 (free) x Expansion Slot
Installed Modules Qty (Max):	0 (installed) / 2 (max)
Interfaces:	24 x 1000Base-T RJ-45 ¦ 4 x Ethernet 1000 – SFP (mini-GBIC) ¦ 2 x 10Gb Ethernet – SFP+ ¦ 1 x console RJ-45 management ¦ 1 x RJ-45 management

General
Authentication Method:	RADIUS, Secure Shell v.2 (SSH2), HWTACACS
Capacity:	IPv4 routing table entries: 12000 ¦ IPv6 routing table entries: 6000
Compliant Standards:	IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.3at
Device Type:	Switch – 24 ports – Managed – stackable
Enclosure Type:	Rack-mountable 1U
Features:	Layer 2 switching, DHCP support, ARP support, MPLS support, VLAN support, auto-uplink (auto MDI/MDI-X), IPv6 support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), MLD snooping, Device Link Detection Protocol (DLDP) support, Rapid Ring Protection Protocol (RRPP) support, Equal-Cost Multipath (ECMP), Bidirectional Forwarding Detection (BFD), Endpoint Admission Defense (EAD), STP Root Guard, Unicast Reverse Path Forwarding (URPF), IPv4 support, LLDP support, dual firmware images, port isolation, packet storm protection, Generic Attribute Registration Protocol (GARP), Intelligent Resilient Framework Technology (IRF), Multicast Source Discovery Protocol (MSDP), Multicast Border Gateway Protocol (MBGP)
Flash Memory:	512 MB
Jumbo Frame Support:	Yes
MAC Address Table Size:	32000 entries
Performance:	Routing/switching capacity: 176 Gbps ¦ Throughput: 130.9 Mpps
Ports:	24 x 10/100/1000 + 4 x Gigabit SFP + 2 x 10 Gigabit SFP+
Power Over Ethernet (PoE):	PoE+
RAM:	1 GB SDRAM
Remote Management Protocol:	SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, SSH-2, CLI
Routing Protocol:	OSPF, RIP, IS-IS, BGP, IGMP, VRRP, PIM-SM, static IP routing, PIM-DM, OSPFv3, PIM-SSM, ECMP, RIPng, MLD, IS-ISv6, BGP-4+, MPLS, Bidirectional Forwarding Detection (BFD)
Subtype:	Gigabit Ethernet

Miscellaneous
Compliant Standards:	FCC Class A certified, ETSI, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825-1, GB 4943, EN 60825-2, VCCI V-3 Class A ITE, EN 300 386, CAN/CSA-C22.2 No. 60950-1
Localisation:	English / Europe
Rack Mounting Kit:	Included

Power
Installed Qty:	0 (installed) / 2 (max)
Power Device:	Internal power supply
