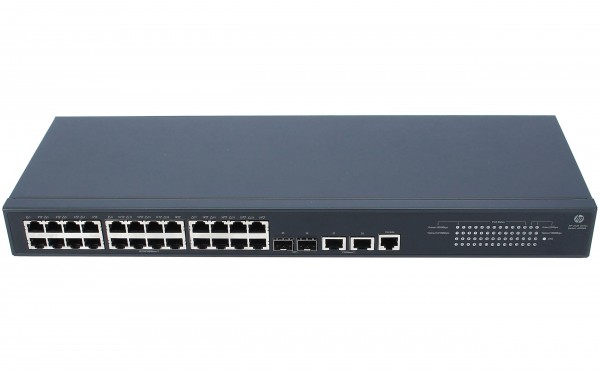

HPE – JG938A – 5130-24G-2SFP+-2XGT EI – Switch – L3

Zapytaj o cenę

Category: HP Tags: El Switch, HPE, JG, SFP, XGT

Description
Reviews (0)

Description

Dimensions & Weight
Depth:	16 cm
Height:	4.37 cm
Weight:	3 kg
Width:	44 cm

Environmental Parameters
Humidity Range Operating:	10 – 90% (non-condensing)
Humidity Range Storage:	5 – 95% (non-condensing)
Max Operating Temperature:	45 °C
Max Storage Temperature:	70 °C
Min Operating Temperature:	-5 °C
Min Storage Temperature:	-40 °C

Expansion / Connectivity
Interfaces:	24 x 1000Base-T RJ-45 ¦ 2 x Gigabit / 10Gbit LAN SFP+ ¦ 2 x Gigabit / 10Gbit LAN RJ-45 ¦ 1 x serial (console) RJ-45

General
Authentication Method:	Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2), HWTACACS
Capacity:	MSTP instances: up to 64 ¦ Simultaneous VLANs: 4094 ¦ IPv4 routing table entries: 512 ¦ IPv6 routing table entries: 256
Compliant Standards:	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3az
Device Type:	Switch – 24 ports – L3 – Managed – stackable
Enclosure Type:	Rack-mountable 1U
Encryption Algorithm:	SSL
Features:	Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), Syslog support, Weighted Round Robin (WRR) queuing, IPv6 support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), DHCP server, Device Link Detection Protocol (DLDP) support, Equal-Cost Multipath (ECMP), STP Root Guard, IPv4 support, LLDP support, Smart Link Pass-Through, dynamic ARP protection, DHCP protection, port isolation, non blocking ports, Strict Priority (SP), Intelligent Resilient Framework Technology (IRF), 1.5MB packet buffer, OpenFlow support, IP source guard
Flash Memory:	512 MB
Jumbo Frame Support:	9KB
MAC Address Table Size:	16384 entries
Performance:	Throughput: up to 96 Mpps ¦ Routing/switching capacity: 128 Gbps
Ports:	24 x 10/100/1000 + 2 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 10 Gigabit Ethernet
RAM:	1 GB SDRAM
Remote Management Protocol:	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH-2, CLI, SCP
Routing Protocol:	RIP-1, RIP-2, IGMP, static IPv4 routing, static IPv6 routing
Subtype:	Gigabit Ethernet

Miscellaneous
Compliant Standards:	GOST, NOM, EN55024, EN 61000-4-3, RoHS, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, ANATEL, FDA, EN 60825-1, EN 6100-3-2, EN 61000-4-29, ANSI C63.4-2009, EN 60825-2, EN 61000-3-3:2008, VCCI V-4, EN 61000-3-2:2006+A1:2009+A2:2009, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-11:2004, EN 300 386 V1.6.1, EMC 2004/108/EC, EN55022:2010 Class A, VCCI V-3/2013.04 Class A, CISPR 24:2010, EN 300 386, AS/NZS CISPR 22:2009, EN 61000-4.4:2012, CAN/CSA-C22.2 No. 60950-1
Localisation:	English / Europe
Rack Mounting Kit:	Included

Power
Power Device:	External power adapter
Voltage Required:	AC 120/230 V (50/60 Hz)
