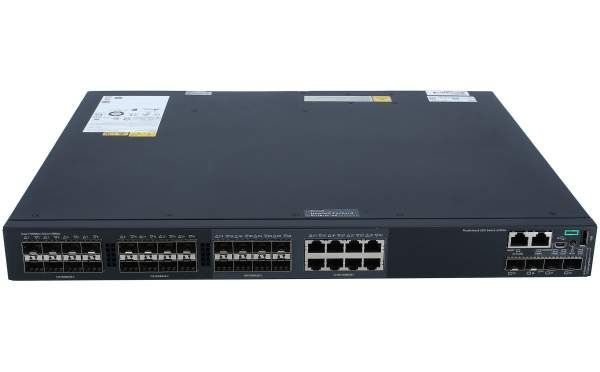

HPE – JH149A – 5510-24G-SFP HI Switch with 1 Interface Slot – Switch – L3

Zapytaj o cenę

Category: HP Tags: HI SWITCH, HPE, INTERFACE SLOTS, JH, Switch

Description
Reviews (0)

Description

Dimensions & Weight
Depth:	35.99 cm
Height:	4.37 cm
Width:	43.99 cm

Environmental Parameters
Humidity Range Operating:	10 – 90% (non-condensing)
Humidity Range Storage:	5 – 95% (non-condensing)
Max Operating Temperature:	45 °C
Max Storage Temperature:	70 °C
Min Operating Temperature:	0 °C
Min Storage Temperature:	-40 °C

Expansion / Connectivity
Expansion Slots:	1 (total) / 1 (free) x Expansion Slot
Installed Modules Qty (Max):	0 (installed) / 1 (max)
Interfaces:	16 x 1000Base-T SFP ¦ 4 x 10GBase-T SFP+ ¦ 8 x 1000Base-T RJ-45/SFP ¦ 1 x console RJ-45 management ¦ 1 x management RJ-45

General
Authentication Method:	Secure Shell (SSH), RADIUS, TACACS, Secure Shell v.2 (SSH2)
Capacity:	IPv4 routing table entries: 32768 ¦ IPv6 routing table entries: 16384
Compliant Standards:	IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ak, IEEE 802.3at, IEEE 802.3az
Device Type:	Switch – 24 ports – L3 – Managed – stackable
Enclosure Type:	Rack-mountable 1U
Features:	Flow control, MPLS support, Weighted Round Robin (WRR) queuing, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Weighted Random Early Detection (WRED), sFlow, DHCP snooping, Quality of Service (QoS), RADIUS support, Rapid Ring Protection Protocol (RRPP) support, Bidirectional Forwarding Detection (BFD), Deficit Weighted Round Robin (DWRR), Strict Priority (SP), 802.1x authentication, Type of Service (ToS), MACsec support, Smoothed Deficit Weighted Round Robin (SDWRR), Virtual Private LAN Service (VPLS)
Flash Memory:	512 MB
MAC Address Table Size:	32K entries
Performance:	Routing/switching capacity: 288 Gbps ¦ Throughput: 210 Mbps
Ports:	16 x Gigabit SFP + 4 x 10 Gigabit SFP+ + 8 x 10/100/1000/SFP
RAM:	2 GB SDRAM
Remote Management Protocol:	SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, SSH-2
Routing Protocol:	OSPF, RIP, BGP, OSPF for IPv6
Subtype:	Gigabit Ethernet

Miscellaneous
Compliant Standards:	EN55024, AS/NZS 60950-1, RoHS, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, GB 4943, EN 61000-4-29, Directive 2004/108/EC, ANSI C63.4-2009, EN 61000-3-3:2008, EN 61000-3-2:2006+A1:2009+A2:2009, EN 61000-4-6:2009, EN 61000-4-11:2004, EN 300 386 V1.6.1, VCCI V-3/2013.04 Class A, CISPR 24:2010, EN 55022:2010 Class A, EN 300 386
Rack Mounting Kit:	Included

Power
Installed Qty:	0 (installed) / 2 (max)
Power Device:	Internal power supply
Power Redundancy:	Optional
Power Redundancy Scheme:	1+1 (with optional power supply)
