| Authentication Method: |
Secure Shell (SSH), RADIUS, TACACS+, HWTACACS |
| Compliant Standards: |
IEEE 802.3, IEEE 802.1D, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3az, IEEE 802.1Qaz |
| Device Type: |

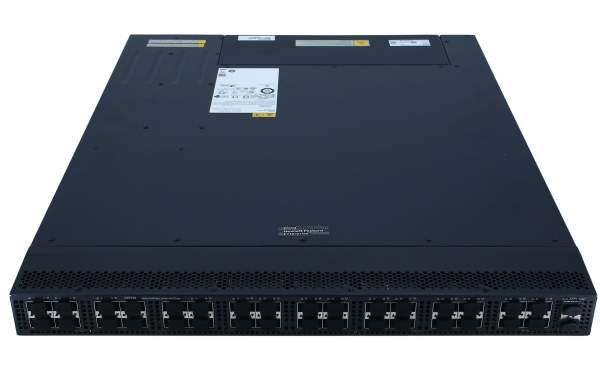

Switch – 32 ports – L3 – Managed – stackable |
| Enclosure Type: |
Rack-mountable 2U |
| Features: |
Flow control, DHCP support, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, Weighted Fair Queuing (WFQ), Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Device Link Detection Protocol (DLDP) support, Equal-Cost Multipath (ECMP), LLDP support, DHCP protection, Registered State Change Notification (RSCN) support, Strict Priority (SP), Edge Virtual Bridging (EVB), reverse airflow support, SNMP support, cut-through, FCoE support, In-Service Software Upgrade (ISSU), IP source guard, VXLAN tunnel endpoints (VTEP) support, High Density Experience (HDX) |
| Flash Memory: |
1 GB |
| Max Units In A Stack: |
10 |
| Performance: |
Latency (10 Gbps): 1 µs ¦ Flow capacity: 2796 Mpps ¦ Routing/switching capacity: 3.2 Tbps |
| Ports: |
32 x 100 Gigabit QSFP28 |
| RAM: |
4 GB SDRAM |
| Remote Management Protocol: |
SNMP 1, RMON 2, SNMP 3, SNMP 2c, SSH-2 |
| Routing Protocol: |
OSPF, IS-IS, RIP-1, IGMP, IGMPv3, MSDP, static IPv6 routing, Bidirectional Forwarding Detection (BFD) |
| Subtype: |
100 Gigabit Ethernet |
