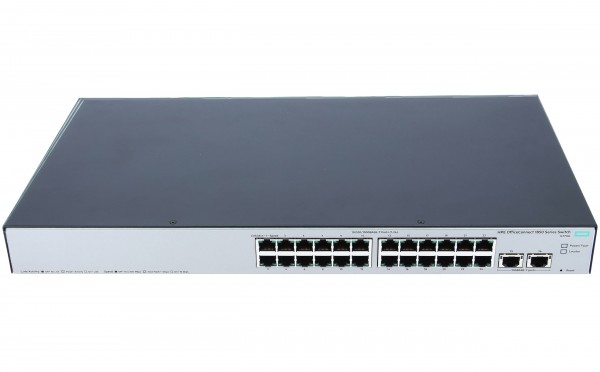

HPE - JL170A - OfficeConnect 1850 24G 2XGT - Switch - 1.000 Mbps - 24-Port 1 HE - Rack-Modul

HPE – JL170A – OfficeConnect 1850 24G 2XGT – Switch – 1.000 Mbps – 24-Port 1 HE – Rack-Modul

Kategoria: HP Znaczników: HPE, JL, OfficeConnect, rack modul, Switch, XGT

Opis
Opinie (0)

Opis

Dimensions & Weight
Depth:	24.64 cm
Height:	4.4 cm
Weight:	2.66 kg
Width:	44.25 cm

Environmental Parameters
Humidity Range Operating:	15 – 95% (non-condensing)
Humidity Range Storage:	15 – 95% (non-condensing)
Max Operating Temperature:	40 °C
Max Storage Temperature:	70 °C
Min Operating Temperature:	0 °C
Min Storage Temperature:	-40 °C

Expansion / Connectivity
Interfaces:	24 x 1000Base-T RJ-45 ¦ 2 x Gigabit / 10Gbit LAN RJ-45

General
Compliant Standards:	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3az
Device Type:	Switch – 24 ports – Managed
Enclosure Type:	Side to side airflow desktop, rack-mountable, wall-mountable 1U
Encryption Algorithm:	SSL
Features:	Full duplex capability, Layer 2 switching, auto-negotiation, auto-uplink (auto MDI/MDI-X), port mirroring, half duplex mode, full duplex mode, SNTP support, Quality of Service (QoS), LLDP support, Link Aggregation Control Protocol (LACP), DHCP client, 1.5MB packet buffer, Protocol-based VLANs support, Network Timing Protocol (NTP)
Jumbo Frame Support:	9220 bytes
MAC Address Table Size:	16000 entries
Performance:	Latency (10 Gbps): 3.7 µs ¦ Latency (1000Base-T): 3.7 µs ¦ Latency (100 Mbps): 9.1 µs ¦ Throughput: 65 Mpps ¦ Switching capacity: 88 Gbps
Ports:	24 x 10/100/1000 + 2 x 10Base-T
Processor:	1 x ARM Cortex-A9: 400 MHz
RAM:	128 MB DDR3 SDRAM
Remote Management Protocol:	SNMP 1, SNMP 2c, HTTP, HTTPS
Subtype:	10 Gigabit Ethernet

Miscellaneous
Compliant Standards:	CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, EN 60825-1, VCCI Class A, CNS 13438, ICES-003 issue 5 Class A, FCC CFR47 Part 15 B Class A, EN 55032:2015, CAN/CSA-C22.2 No. 60950-1
Included Accessories:	Wall mounting kit, table mounting kit
MTBF:	99 years
Rack Mounting Kit:	Included

Power
Power Consumption Operational:	29.5 Watt
Power Device:	Internal power supply
Voltage Required:	AC 120/230 V (50/60 Hz)
