Description
| Chassis | |
|---|---|
| Installed Devices / Modules Qty: | 0 |
| Supported Devices / Modules Qty: | 12 |
| Supported Drives: | SAS-2 |
| Dimensions & Weight | |
|---|---|
| Depth: | 55.6 cm |
| Height: | 8.7 cm |
| Weight: | 16.4 kg |
| Width: | 48.3 cm |
| Environmental Parameters | |
|---|---|
| Humidity Range Operating: | 20 – 80% |
| Max Operating Temperature: | 35 °C |
| Min Operating Temperature: | 10 °C |
| Expansion / Connectivity | |
|---|---|
| Expansion Bays: | 12 (total) / 12 (free) x hot-swap – 3.5″ |
| Interfaces: | 1 x SAS 6Gb/s ¦ 1 x Ethernet 1000 ¦ 1 x 8Gb Fibre Channel |
| General | |
|---|---|

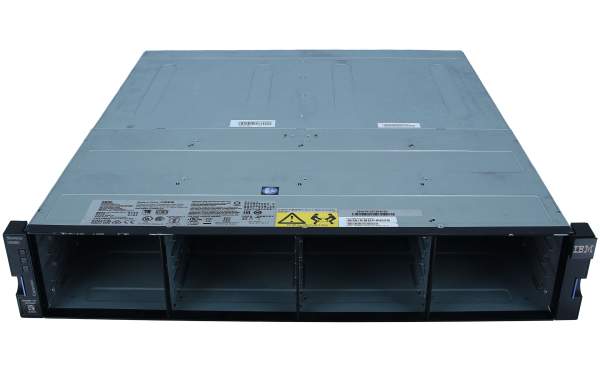

| Device Type: | Hard drive array |
| Enclosure Type: | Rack-mountable – 2U |
| Hard Drive | |
|---|---|
| Capacity: | 0 |
| Type: | Hot-swap |
| Power | |
|---|---|
| Power Device: | Internal power supply – hot-plug |
| Power Provided: | 300 Watt |
| Power Redundancy: | Yes |
| Voltage Required: | AC 120/230 V – 50/60 Hz |
| Storage | |
|---|---|
| HDD Array External Interface: | 8Gb Fibre Channel, SAS 6Gb/s, iSCSI (1 GbE) |
| Storage Controller | |
|---|---|
| Interface Type: | SAS 6Gb/s |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Type: | RAID |
