Description
| Chassis | |
|---|---|
| Supported Devices / Modules Qty: | 24 |
| Supported Drives: | SAS-3 |
| Dimensions & Weight | |
|---|---|
| Depth: | 63 cm |
| Height: | 8.8 cm |
| Weight: | 30 kg |
| Width: | 44.3 cm |
| Environmental Parameters | |
|---|---|
| Humidity Range Operating: | 20 – 80% (non-condensing) |
| Max Operating Temperature: | 35 °C |
| Min Operating Temperature: | 5 °C |
| Environmental Standards | |
|---|---|
| ENERGY STAR Certified: | Yes |
| Expansion / Connectivity | |
|---|---|
| Expansion Bays: | 24 (total) / 24 (free) x hot-swap – 2.5″ SFF |
| Interfaces: | 8 x Ethernet 10Gb (iSCSI) / 16Gb Fibre Channel (output) – SFP/SFP+ ¦ 2 x serial – mini-USB Type B ¦ 2 x management – RJ-45 ¦ 2 x SAS 12Gb/s (input) – 36 pin 4x Mini SAS HD (SFF-8644) |
| General | |
|---|---|

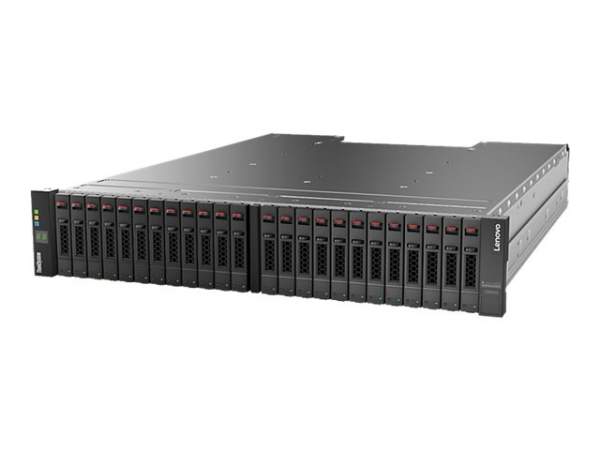

| Device Type: | Hard drive array |
| Enclosure Type: | Rack-mountable – 2U |
| Localisation: | English / Worldwide (excluding China, Japan) |
| Hard Drive | |
|---|---|
| Type: | No HDD |
| Miscellaneous | |
|---|---|
| Cables Included: | 1 x USB cable |
| Compliant Standards: | BSMI CNS 13438 Class A, ICES-003, EN55024, CCC, RoHS, EN 60950-1, FCC Part 15 A, GB 17625.1, GB 9254 Class A, VCCI Class A, EAC, NMB-3 Class A, GB 4943.1, RCM, MSIP, NOM-019, UL/CSA60950-1, CNS 14336-1, EN 55032 Class A |
| Included Accessories: | Rack mounting kit |
| Power | |
|---|---|
| Max Supported Qty: | 2 |
| Power Device: | 2 x internal power supply – hot-plug |
| Power Provided: | 580 Watt |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| Voltage Required: | AC 120/230 V – 50/60 Hz |
| Storage | |
|---|---|
| HDD Array External Interface: | 8Gb Fibre Channel, iSCSI (1 GbE), iSCSI (10 GbE), 16Gb Fibre Channel |
| Host Channels: | 8 |
| Storage Controller | |
|---|---|
| Cache / Buffer Size (Max): | 8 GB |
| Installed Qty: | 2 |
| Interface Type: | SAS 12Gb/s |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Type: | RAID |
| Storage Controller (2nd) | |
|---|---|
| Installed Qty: | 2 |
