Description
| Chassis | |
|---|---|
| Installed Devices / Modules Qty: | 0 |
| Supported Devices / Modules Qty: | 12 |
| Supported Drives: | SAS-2 |
| Dimensions & Weight | |
|---|---|
| Depth: | 57.2 cm |
| Height: | 8.9 cm |
| Weight: | 18.4 kg |
| Width: | 44.7 cm |
| Environmental Parameters | |
|---|---|
| Humidity Range Operating: | 10 – 90% (non-condensing) |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 5 °C |
| Sound Emission: | 55 dB |
| Environmental Standards | |
|---|---|
| ENERGY STAR Certified: | Yes |
| Expansion / Connectivity | |
|---|---|
| Expansion Bays: | 12 (total) / 12 (free) – 3.5″ LFF |
| Interfaces: | 2 x USB (management) ¦ 2 x Ethernet 1000 (management) – RJ-45 |
| General | |
|---|---|

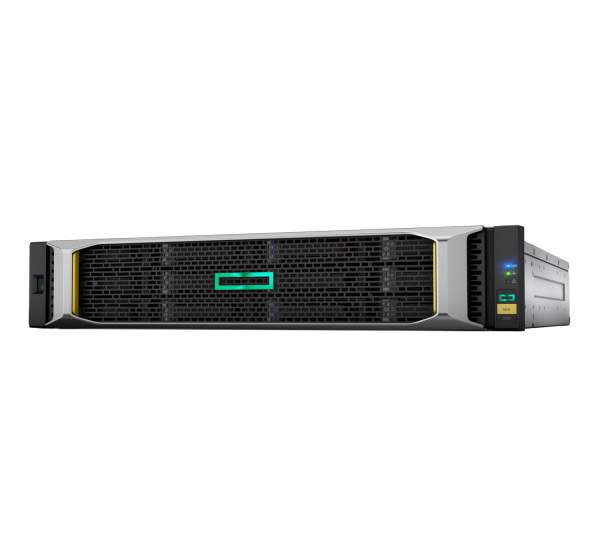

| Device Type: | Hard drive array |
| Enclosure Type: | Rack-mountable – 2U |
| Localisation: | EMEA |
| Hard Drive | |
|---|---|
| Type: | No HDD |
| Miscellaneous | |
|---|---|
| Compliant Standards: | FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 61000-3-2, GS, EN 61000-3-3, CCC, IEC 60950-1, EN 60950-1, FCC Part 15.109, WEEE, RoHS, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, KN24, KN22 Class A, China RoHS, EN 55022 Class A, EN 55024 Class A, CNS 13438 Class A, UL 6950-1, ICES-003:2004 Class A, AS/NZS CISPR22 Class A |
| Included Accessories: | Rack mounting kit, 2 x 7 m PDU cords |
| Power | |
|---|---|
| Max Supported Qty: | 2 |
| Power Device: | 2 x internal power supply – hot-plug |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| Voltage Required: | AC 120/230 V – 50/60 Hz |
| Storage | |
|---|---|
| Max Supported Capacity: | 168 TB |
| Maximum LUNs: | 512 |
| Storage Controller | |
|---|---|
| Cache / Buffer Size (Max): | 8 GB |
| Data Transfer Rate: | 600 MBps |
| Installed Qty: | 2 |
| Interface Type: | SAS 6Gb/s |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Type: | RAID |
| Storage Controller (2nd) | |
|---|---|
| Installed Qty: | 2 |
| System Requirements | |
|---|---|
| OS Required: | HP-UX, Red Hat Linux, SUSE Linux Enterprise Server, Oracle Solaris, Microsoft Windows Server 2012, Citrix XenServer, Oracle Linux, Microsoft Windows Server 2016, VSI OpenVMS, Microsoft Windows Server 2019 |
